Description
Parameters

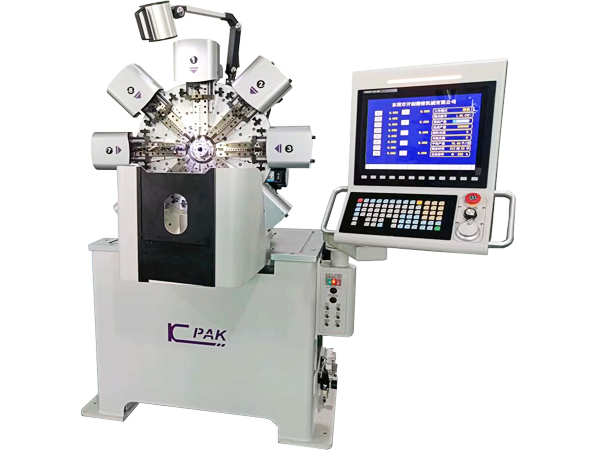

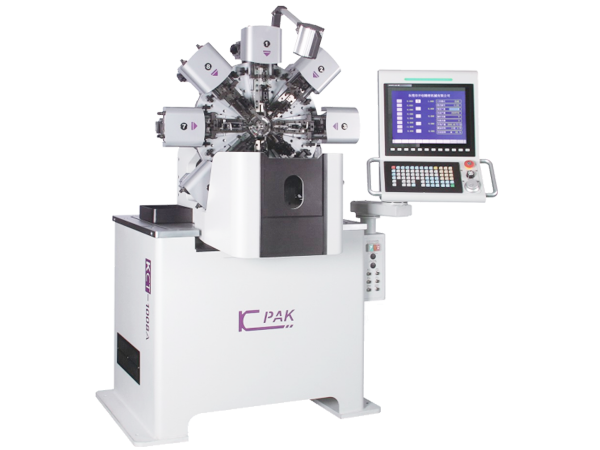

| 機型 | Model | KCT-1008A |
| 軸數(shù) | Number Of Axes | 10 |
| 加工線徑 | Wire Diameter | 0.1-0.8mm |
| 加工送線速度 | Max. Wire Feed Speed | 90m/min |
| 旋繞比 | Spring Index | 4 |
| 送線輪組數(shù) | Feed Roller Group | 1 Groups |
| 送線伺服電機 | Feed Servo Motor | 0.75kw |
| 轉(zhuǎn)芯伺服電機 | Quill Servo Motor | 0.75kw |
| 成形伺服電機 | Fomer Servo Motor | 0.75kw *8 |
| 卷曲伺服電機 | Spinner Servo Motor | 0.15kw |
| 氣壓 | Air pressure | 0.2-0.4Pa |
| 汽缸 | Air cylinder | 5 |
| 探針 | Probe | 4 |
| 跑線感應(yīng) | Running line induction | 2 |
| 電源 | Power | 3P/380V 50/60HZ |
| 機器尺寸(長*寬*高) | Dimension (L*W*H) | 1100*660*1650mm |
| 機器重量 | Weight | 900 KG |
