Hello,Welcome to DongGuan KaiChuang Precision Machinery Co.,Ltd!

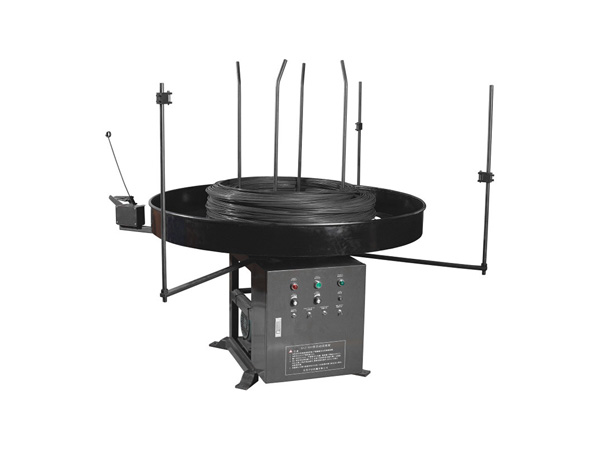

KSJ-400 automatic wire feeding machine

Description

  KSJ-400 automatic wire feeding machine, referred to as 400kg automatic wire feeding decoiler, is our company dedicated to supporting the CNC spring machine in the process of forming the wire part of the design, bearing weight less than 400kg and the coil diameter less than 1300mm, usually can also be used with other devices such as spring machine, straightening machine ring, machine, punching machine, screw machine, coiling machine and wire forming machine matched with.

Parameters

    機 型   Model   KSJ-400   KSJ-750
    最大載重       Max Capacity of Load     400kg   750kg
    最大轉速   Max Speed of Table   58rpm   55rpm
    線盤直徑   Diameter of Table   1300mm   1500mm
    電 機   Motor   1.5kw   1.8kw
    電 源   Power AC   220v 50HZ   220v 50HZ
    尺 寸   Dimensions(L*W*H)   1300x1300x900mm     1600x1600x1100mm
    重 量   Weight   150kg   300kg



  Automatic wire feeding machine, also called automatic wire feeding decoiler, automatic wire feeding speed by adjusting in the process of operation, the supporting host device to maintain synchronization with the wire feeding speed automatic wire feeding shelf; when the wire, wire disconnection or after the automatic wire feeding shelf it will send the alarm signal and automatically shutdown, has the advantages of simple operation, convenient use and high work efficiency.



checkMode(1)
Main Products: CNC spring machine | computer compression spring machine | CNC versatile spring forming machine | camless spring machine
